FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

8031

Universal joint with magnetic connecting system.

Device suitable for Venetian blinds, Rolling shutters, Screens

8031

You are in: Solutions / Manual / Universal joints with plate / 8031

General features

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Universal joint with magnetic connecting system

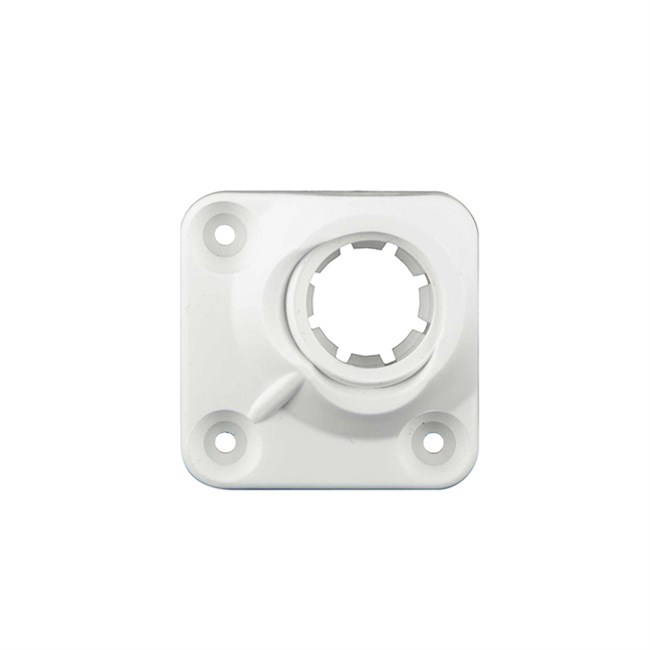

  • Plate in POM.
  • Universal joint in powder-coated Zamak.
  • Driving rod in zinc-plated steel.
  • Floating on POM bearings.
  • Rivets in stainless steel.
CREATE A PDF

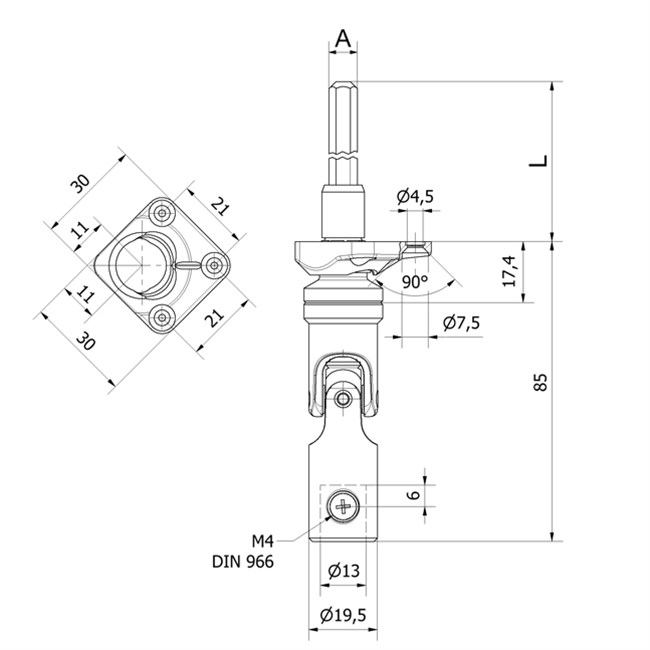

Main characteristics

Code
Output (mm)
Drive (mm)
Plate size (mm)
Colour
Fixing holes
Plate material
Rod protrusion (mm)
Ø Universal joint (mm)
Plate
80317017V1316
E7
Female 13 + screw
30x30
RAL 9016
3
Plastic material
170
19
With plate
80317032V1305
E7
Female 13 + screw
30x30
RAL 7035
3
Plastic material
320
19
With plate
80317032V1316
E7
Female 13 + screw
30x30
RAL 9016
3
Plastic material
320
19
With plate
