FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

7808

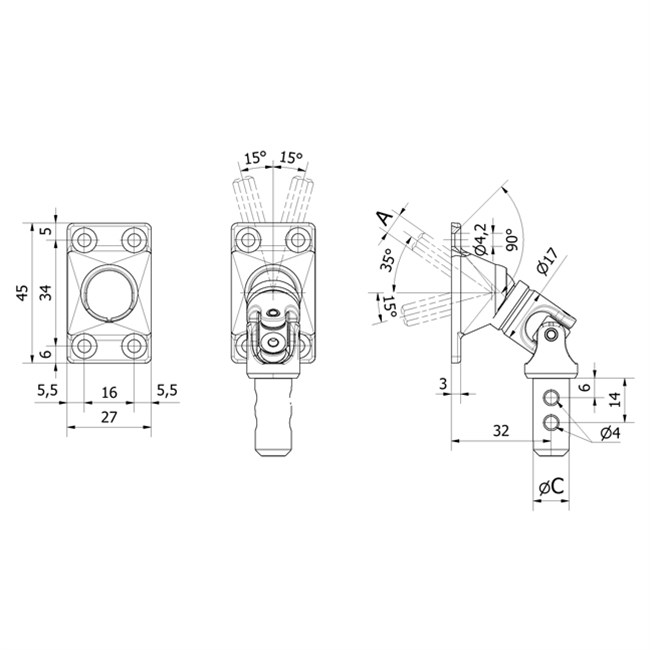

Universal joint 35°. Zamak plate 4 holes with lateral movement.

Device suitable for Venetian blinds, Rolling shutters, Screens

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Universal joint 35°
Zamak plate
4 holes with lateral movement

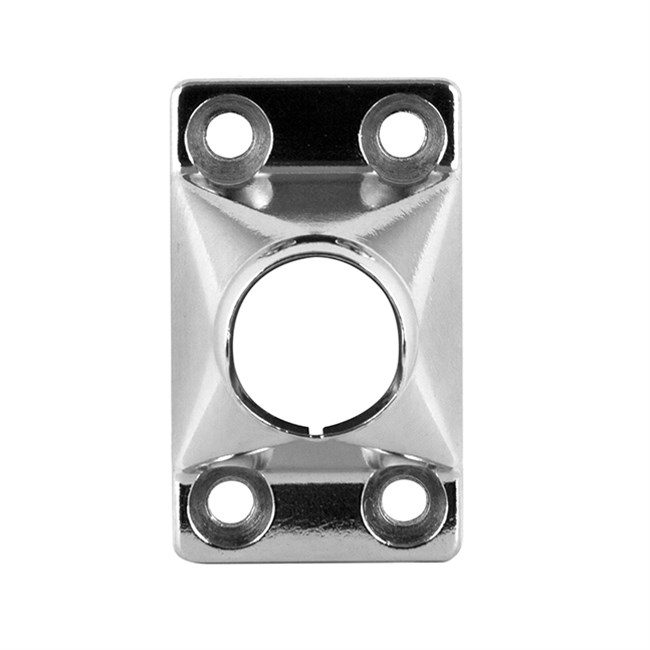

Plate in powder-coated or nickel-plated Zamak.
Universal joint in powder-coated or nickel-plated Zamak.
Floating on POM bearings.
Rivets in stainless steel.

CREATE A PDF

Main characteristics

Code	Angle	Output (mm)	Drive (mm)	Plate size (mm)	Colour	Fixing holes	Plate material	Rod protrusion (mm)	Ø Universal joint (mm)	Plate
78085000M10NK	35°	Q6	Male 10	27x45	Nickel plated	4	Zama	Without rod	17	With plate
78085000M1005	35°	Q6	Male 10	27x45	RAL 7035	4	Zama	Without rod	17	With plate
78085000M1016	35°	Q6	Male 10	27x45	RAL 9016	4	Zama	Without rod	17	With plate
78085000M12NK	35°	Q6	Male 12	27x45	Nickel plated	4	Zama	Without rod	17	With plate
78085000M1205	35°	Q6	Male 12	27x45	RAL 7035	4	Zama	Without rod	17	With plate
78085000M1216	35°	Q6	Male 12	27x45	RAL 9016	4	Zama	Without rod	17	With plate
78086000M10NK	35°	E6	Male 10	27x45	Nickel plated	4	Zama	Without rod	17	With plate
78086000M1005	35°	E6	Male 10	27x45	RAL 7035	4	Zama	Without rod	17	With plate
78086000M1016	35°	E6	Male 10	27x45	RAL 9016	4	Zama	Without rod	17	With plate
78086000M12NK	35°	E6	Male 12	27x45	Nickel plated	4	Zama	Without rod	17	With plate
78086000M1205	35°	E6	Male 12	27x45	RAL 7035	4	Zama	Without rod	17	With plate
78086000M1216	35°	E6	Male 12	27x45	RAL 9016	4	Zama	Without rod	17	With plate
