FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

7802

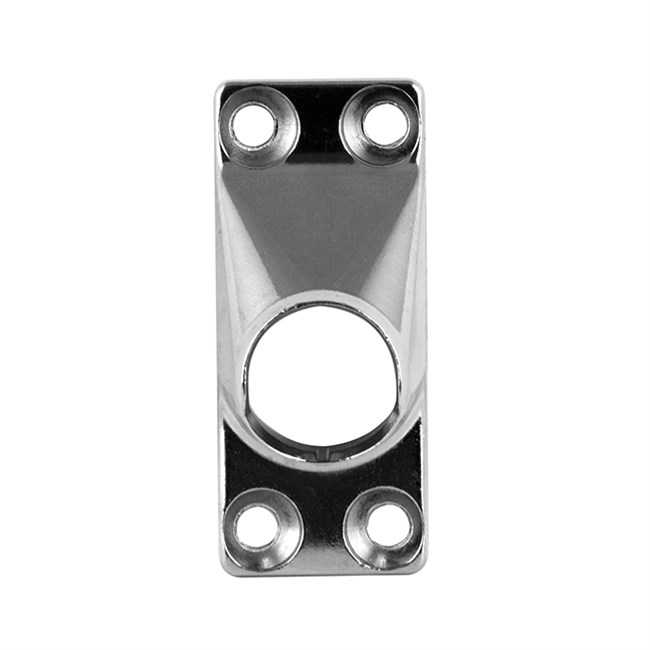

Universal joint 50°. Zamak plate 4 holes with lateral movement.

Device suitable for Venetian blinds, Rolling shutters, Screens

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Universal joint 50°
Zamak plate
4 holes with lateral movement

Plate in powder-coated or nickel-plated Zamak.
Universal joint in powder-coated or nickel-plated Zamak.
Floating on POM bearings.
Rivets in stainless steel.

CREATE A PDF

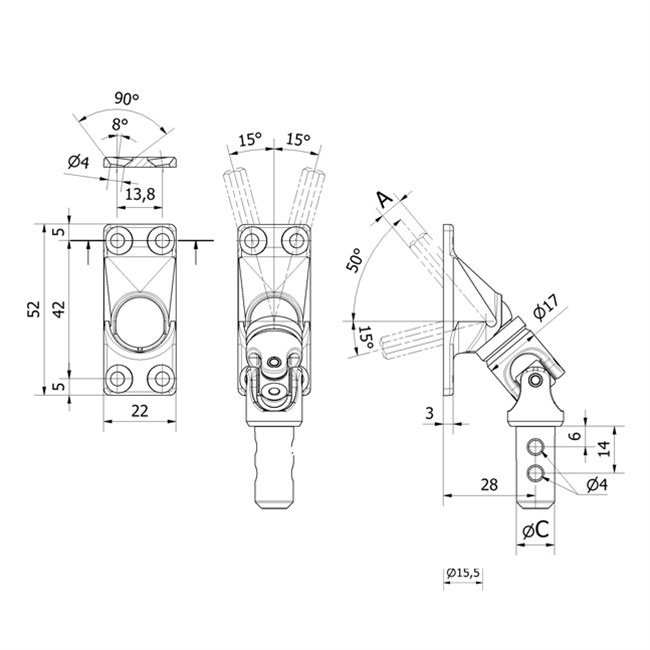

Main characteristics

Code	Angle	Output (mm)	Drive (mm)	Plate size (mm)	Colour	Fixing holes	Plate material	Rod protrusion (mm)	Ø Universal joint (mm)	Plate
78025000M10NK	50°	Q6	Male 10	22x52	Nickel plated	4	Zama	Without rod	17	With plate
78025000M1005	50°	Q6	Male 10	22x52	RAL 7035	4	Zama	Without rod	17	With plate
78025000M1016	50°	Q6	Male 10	22x52	RAL 9016	4	Zama	Without rod	17	With plate
78025000M12NK	50°	Q6	Male 12	22x52	Nickel plated	4	Zama	Without rod	17	With plate
78025000M1205	50°	Q6	Male 12	22x52	RAL 7035	4	Zama	Without rod	17	With plate
78025000M1216	50°	Q6	Male 12	22x52	RAL 9016	4	Zama	Without rod	17	With plate
78026000M10NK	50°	E6	Male 10	22x52	Nickel plated	4	Zama	Without rod	17	With plate
78026000M1005	50°	E6	Male 10	22x52	RAL 7035	4	Zama	Without rod	17	With plate
78026000M1016	50°	E6	Male 10	22x52	RAL 9016	4	Zama	Without rod	17	With plate
78026000M12NK	50°	E6	Male 12	22x52	Nickel plated	4	Zama	Without rod	17	With plate
78026000M1205	50°	E6	Male 12	22x52	RAL 7035	4	Zama	Without rod	17	With plate
78026000M1216	50°	E6	Male 12	22x52	RAL 9016	4	Zama	Without rod	17	With plate
