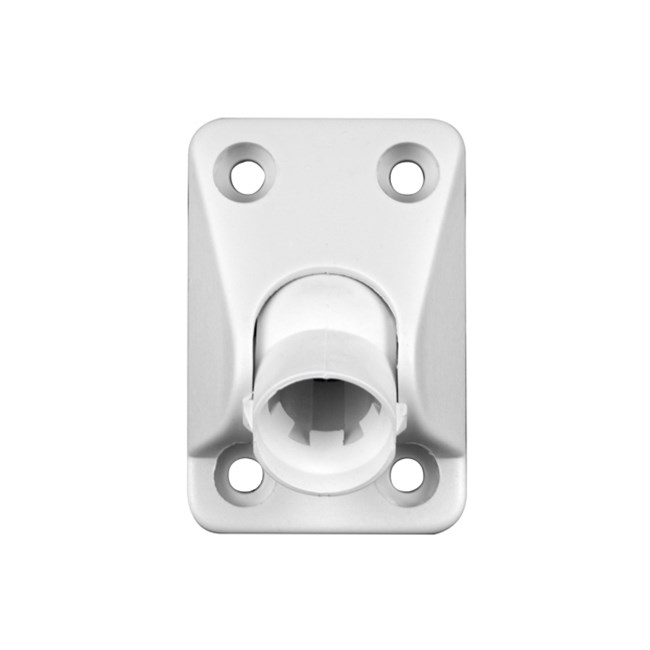

Universal joint 50°. Nylon plate.

Device suitable for Venetian blinds, Rolling shutters, Screens

FOR VENETIAN BLINDS, ROLLING SHUTTERS AND SCREENS

Universal joint 50°
Nylon plate

Plate in Nylon.
Universal joint in powder-coated Zamak.
Driving rod in zinc-plated steel.
Floating on POM bearings.
Rivets in stainless steel.

Fast-coupling modular system.

CREATE A PDF

Main characteristics

Code	Angle	Output (mm)	Drive (mm)	Plate size (mm)	Colour	Fixing holes	Plate material	Rod protrusion (mm)	Ø Universal joint (mm)	Plate
77435030F1516	50°	Q6	Female 15,5	35x52	RAL 9016	4	Plastic material	300	19	With plate
77435030M1216	50°	Q6	Male 12	35x52	RAL 9016	4	Plastic material	300	19	With plate
77436030F1505	50°	E6	Female 15,5	35x52	RAL 7035	4	Plastic material	300	19	With plate
77436030F1516	50°	E6	Female 15,5	35x52	RAL 9016	4	Plastic material	300	19	With plate
77436030M1205	50°	E6	Male 12	35x52	RAL 7035	4	Plastic material	300	19	With plate
77436030M1216	50°	E6	Male 12	35x52	RAL 9016	4	Plastic material	300	19	With plate
77437030F1505	50°	E7	Female 15,5	35x52	RAL 7035	4	Plastic material	300	19	With plate
77437030F1516	50°	E7	Female 15,5	35x52	RAL 9016	4	Plastic material	300	19	With plate
77437030M1205	50°	E7	Male 12	35x52	RAL 7035	4	Plastic material	300	19	With plate
77438025F1505	50°	Q8	Female 15,5	35x52	RAL 7035	4	Plastic material	250	19	With plate
77438025F1516	50°	Q8	Female 15,5	35x52	RAL 9016	4	Plastic material	250	19	With plate
77438040CA16	50°	Q8	Magnetic male	35x52	RAL 9016	4	Plastic material	400	19	With plate
77438040F1516	50°	Q8	Female 15,5	35x52	RAL 9016	4	Plastic material	400	19	With plate
