MOTORS FOR AWNINGS AND ROLLING SHUTTERS

Ocean

For your safety: motor equipped with manual override!

Activation by switch. Mechanical limit switch.

Device suitable for Rolling shutters, Awnings, Pergolas

For your safety: motor equipped with manual override!

MOTORS FOR AWNINGS AND ROLLING SHUTTERS

Reliable and easy adjustment of the limit switches.
Double access to the adjusting screws.

Thanks to its small size, this device can be installed in limited spaces.
The reduction ratio is 1:24 (Ø45) and 1:55 (Ø58).

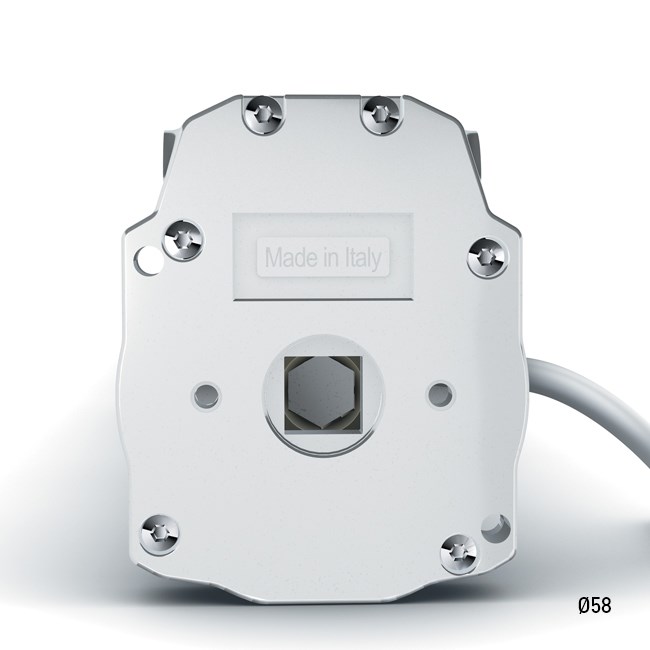

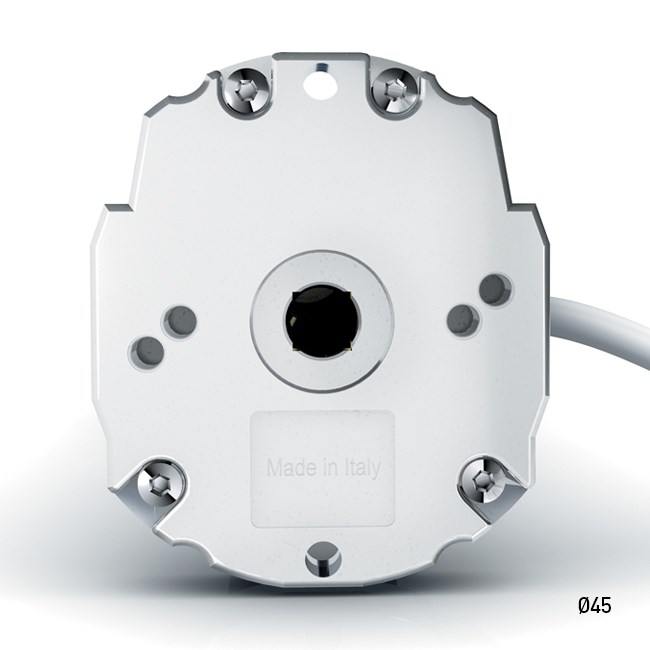

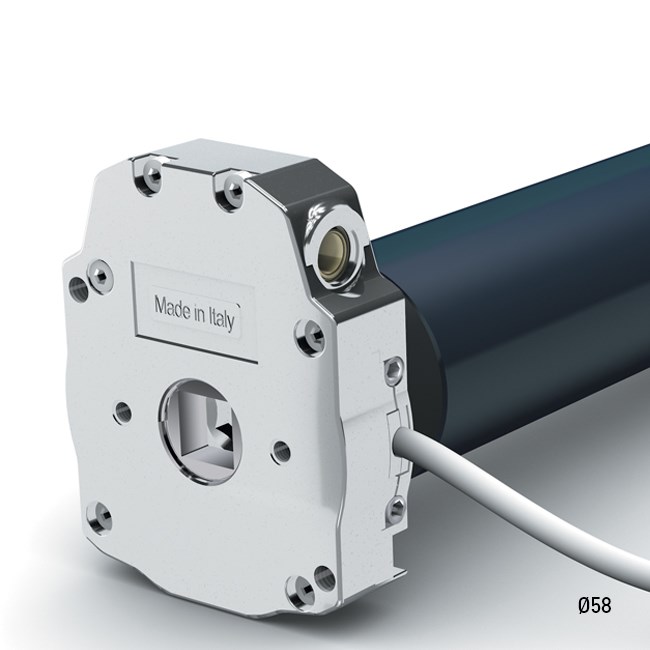

Thanks to the metallic head, the motor can be fastened directly to the bracket without needing additional supports.

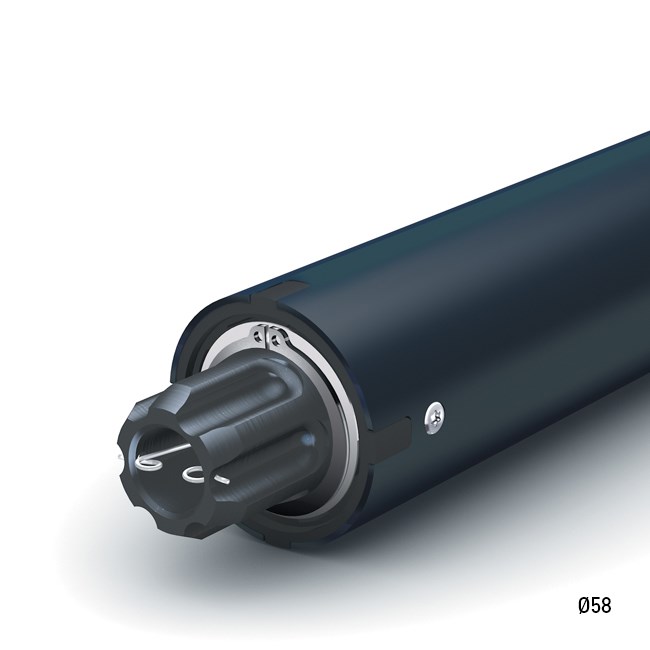

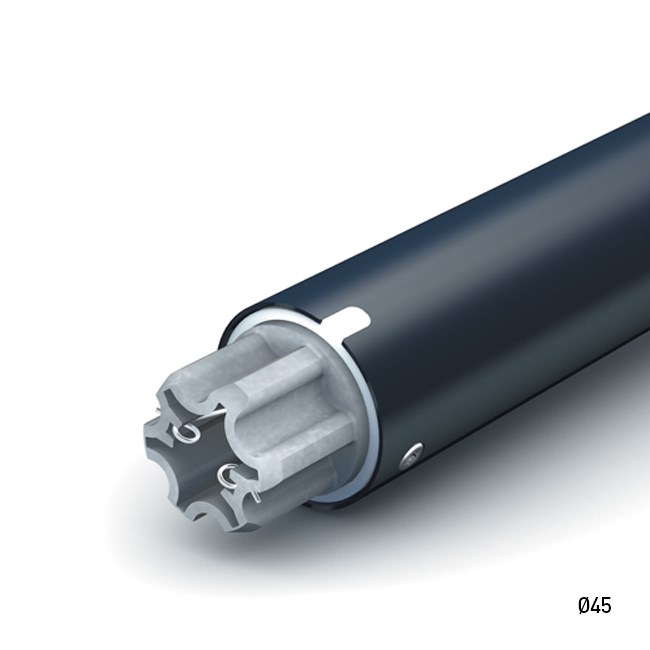

The star-shaped metallic reducer pin makes the motor highly reliable.

CREATE A PDF

Code	Output torque (Nm)	Diameter	Fast motors	Head	Speed (rpm)	Power supply (V/Hz)
CMS45151700	15	45		Zama	17	230/50
CMS45251700	25	45		Zama	17	230/50
CMS45321700	32	45		Zama	17	230/50
CMS45322000	32	45		Zama	20	120/60
CMS45401400	40	45		Zama	14	120/60
CMS45401700	40	45		Zama	17	230/50
CMS45501200	50	45		Zama	12	230/50
CMS45501400	50	45		Zama	14	120/60
CMS58027500	20	58	X	Zama	75	230/50
CMS58061400	60	58		Zama	14	120/60
CMS58061700	65	58		Zama	17	230/50
CMS58081400	80	58		Zama	14	120/60
CMS58081700	85	58		Zama	17	230/50
CMS58101100	100	58		Zama	11	230/50
CMS58121100	120	58		Zama	11	230/50

Characteristics	15/17 - CMS45151700	25/17 - CMS45251700	32/17 - CMS45321700	32/20 - CMS45322000	40/14 - CMS45401400	40/17 - CMS45401700	50/12 - CMS45501200	50/14 - CMS45501400	20/75 - CMS58027500	60/14 - CMS58061400	65/17 - CMS58061700	80/14 - CMS58081400	85/17 - CMS58081700	100/11 - CMS58101100	120/11 - CMS58121100
Motor torque (Nm)	15	25	32	32	40	40	50	50	20	60	65	80	85	100	120
Speed	17 rpm	17 rpm	17 rpm	20 rpm	14 rpm	17 rpm	12 rpm	14 rpm	75 rpm	14 rpm	17 rpm	14 rpm	17 rpm	11 rpm	11 rpm
Mechanical limit switch	32	32	32	32	32	32	32	32	29	29	29	29	29	29	29
Power (W)	170	225	250	250	250	275	275	250	415	310	330	380	375	360	415
Stand-by (W)	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Consumption (A)	0,8	1	1,1	2,1	2,1	1,25	1,25	2,1	1,9	2,6	1,5	3,2	1,7	1,6	1,9

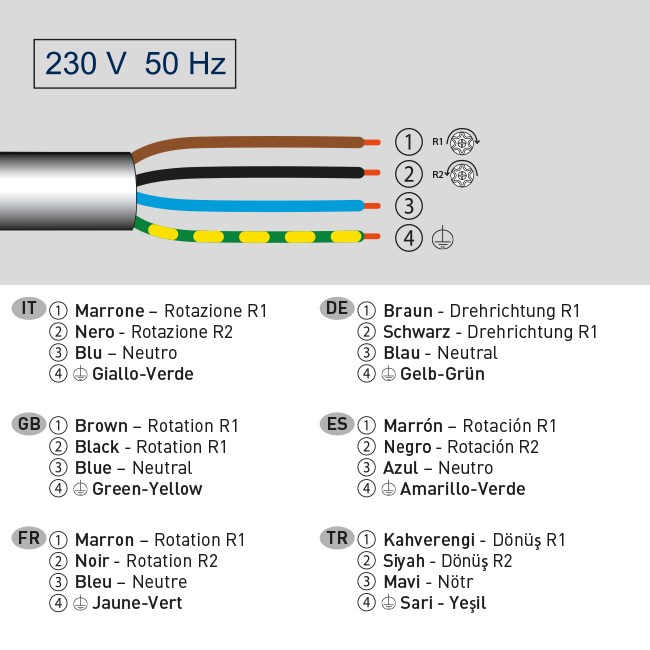

Cable 4 x 0,75 (m)	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5
Operating time (min)	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Protection degree	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44	IP44
Weight (kg)	3,7	4	4	4	4	4	4	4	7	7	7	7	7	7	7

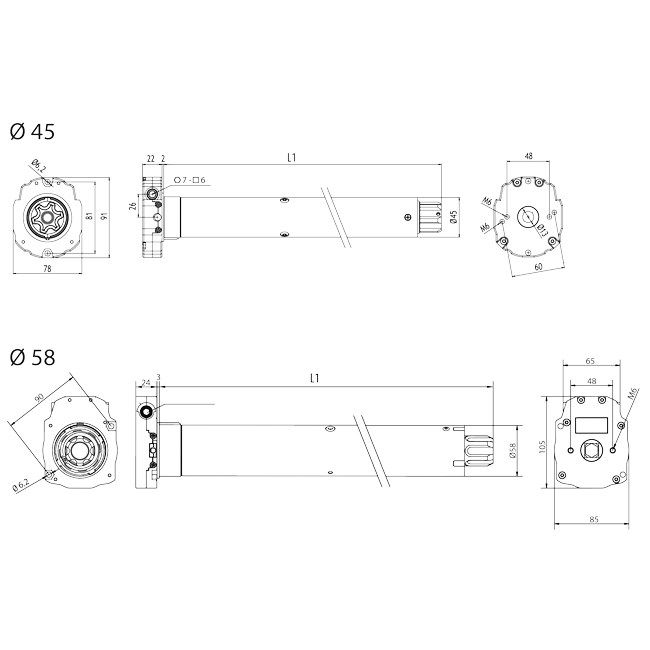

L1 (mm)	646	646	646	670	670	646	646	670	703	703	703	703	703	703	703
